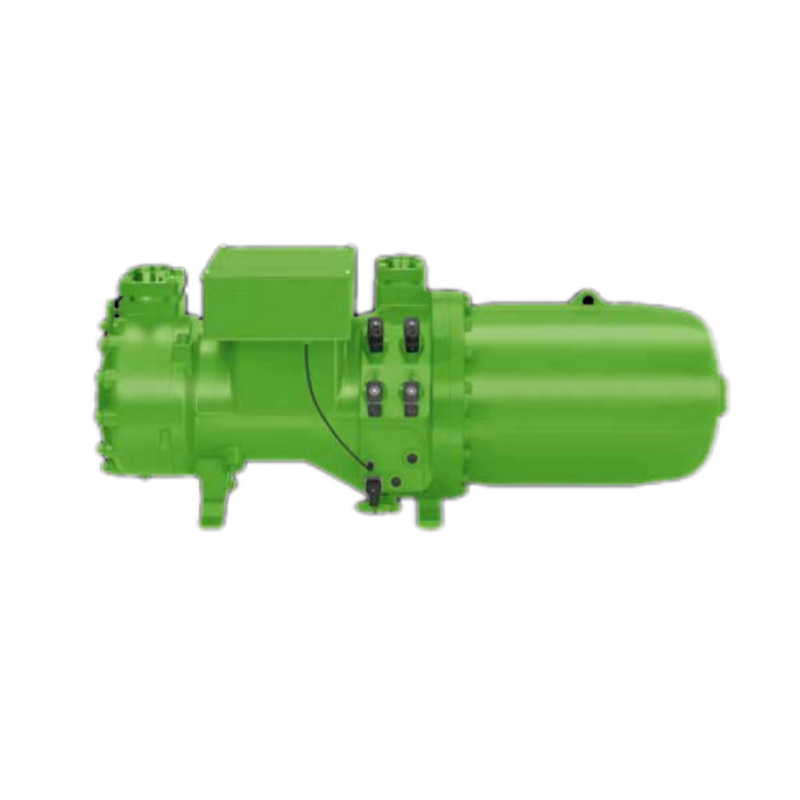

Bitzer Screw Compressor CSW8593-160
CSW8593-160
Quantity
Bitzer Screw Compressor
Bitzer Screw Compressor reduce costs across the entire product lifespan in the application.
Bitzer Screw Compressor support system design for high efficiency performance and for the use of alternative refrigerants for light commercial, commercial and industrial HVAC applications such as rooftops units, chillers, process cooling, packaged units etc.
Key Features
Wide range with wide application envelope suit variedapplications.
Innovative IDV technology further enhances part-load efficiency with minimal redesign costs.
Bringing a new level of compressor robustness and systemreliability.
Manifold configurations with high reliability for stagedmodulations.
Product Details
Bitzer Screw Compressor reduce costs across the entire product lifespan in the application.
Bitzer Screw Compressor support system design for high efficiency performance and for the use of alternative refrigerants for light commercial, commercial and industrial HVAC applications such as rooftops units, chillers, process cooling, packaged units etc.
Key Features
Wide range with wide application envelope suit variedapplications.
Innovative IDV technology further enhances part-load efficiency with minimal redesign costs.
Bringing a new level of compressor robustness and systemreliability.
Manifold configurations with high reliability for stagedmodulations.
Product Details
| Model | CSW8593-160 |
| Displacement | 615/742m³/h |
| Refrigerant | R22/R407C |
| Druckleitung | DN 100 |
| Saugleitung | DN 100 |
| Leistungsstufen Nominal | 100/75/50 % |
| Voltage | 400 V ±10% Δ/ΔΔ–3–50Hz 460 V ±10% Δ/ΔΔ–3–60Hz |
| Max. Operating Current | 266A |
| Max. power consum. | 147KW |
| Oil charge | 30L |
| Weight | 1260kg |
| Usage/Application | AC,drier,refrigeration,chiller,etc. |
